  • 930 RC / HON CRF 04-18 KAW KX/KXF 2006-20

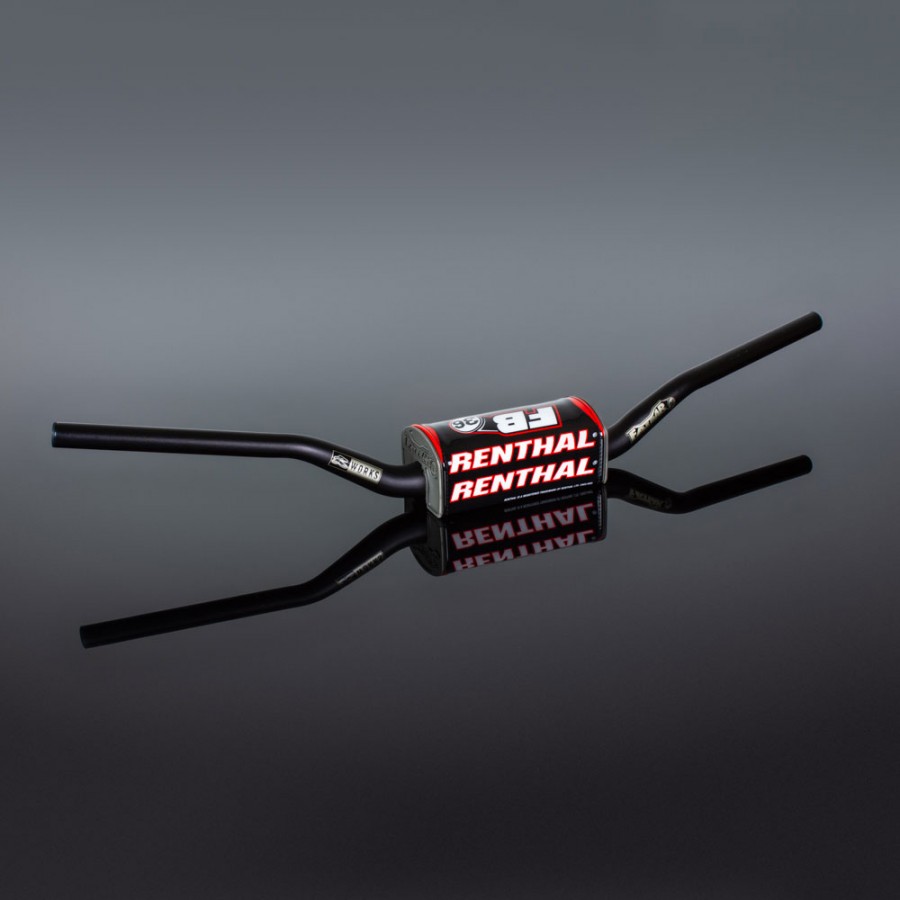

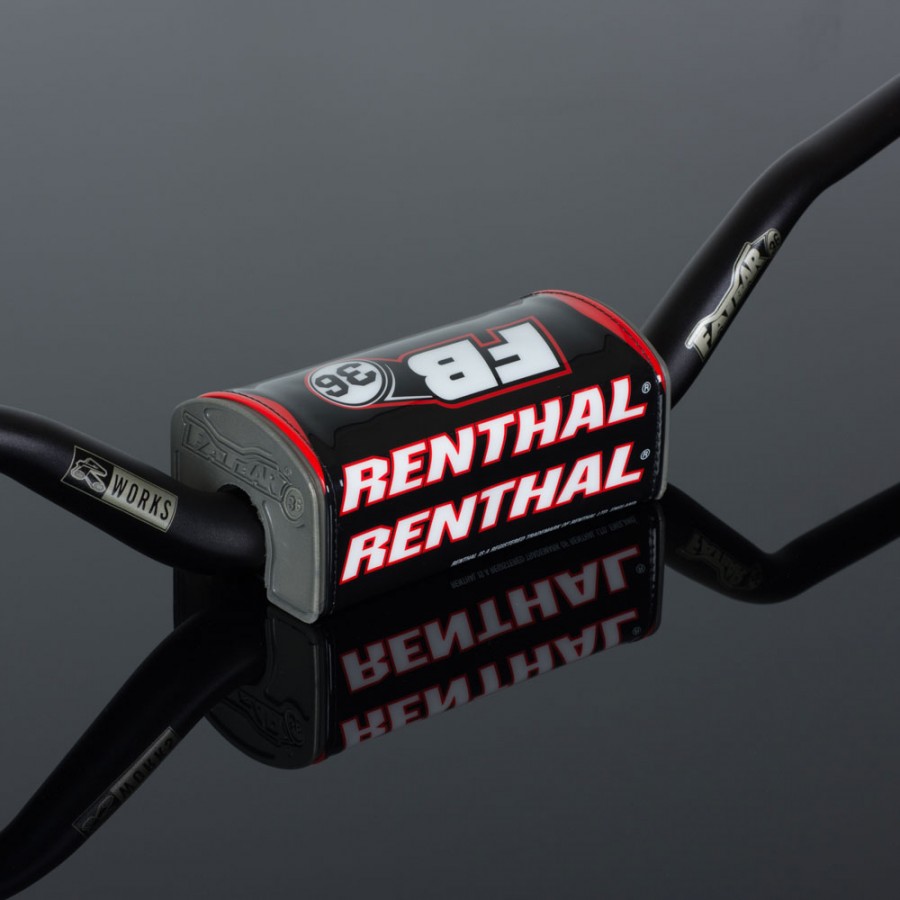

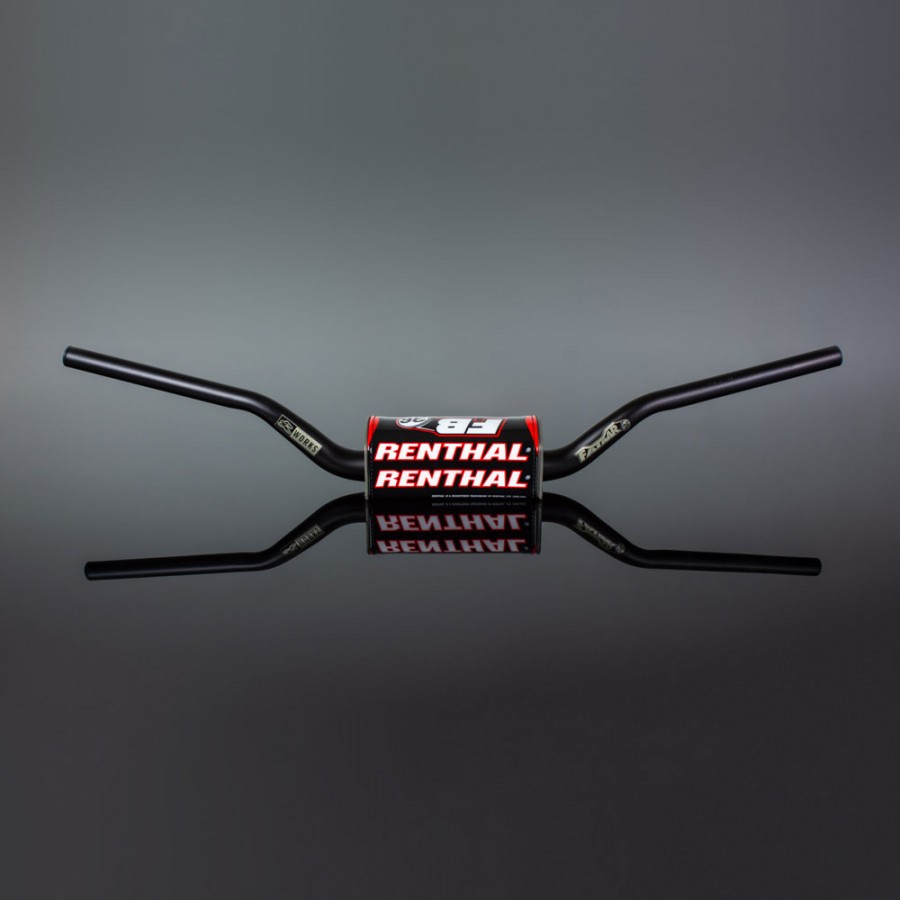

930 RC / HON CRF 04-18 KAW KX/KXF 2006-20


  • Prices from : $179.95

  • Ex Tax: $179.95
  • Product Code: 930-01
  • Availability: Out of Stock

Available Options


Please contact your local Renthal Stockist

0 | 179.95


At Renthal we have always strived to produce the strongest, highest quality product we can. Our current handlebar range is at a strength level our factory level teams feels it needs to be but weight saving will always be high on their priority list. We made this our priority as well in developing Fatbar36 and the new aluminium alloy we’ve created called Zarilium.

Used in conjection with 36Tech™ bar mounts, the Fatbar36 is designed as the ultimate rider control

For more info on Fatbar36, head over to the Fatbar36 Explained articles.

Twinwall equivalent - 997

Fatbar equivalent - 604

Check your bikes fitments at Fit my Bike

bar dimensions
Bar Dimensions
Width / Dim A 804
Height / Dim B 101
Rise / Dim C 60
Clamping Width / Dim D 130
Sweep / Dim E 54
Control Length / Dim F 197
Dim G 372
Height / Dim Bv 104
Mounting Diameter 36

Write a review

Note: HTML is not translated!
    Bad           Good

Related Products


Tags: fatbar 36

Name

FatBar36 Bend

Fatbar Bend

Twinwall Bend

RC / Honda CRF

930 604 997

Reed / Windham

931 603 998

Villopoto / Stewart

933 827 996

KTM SX/SX-F 09-12, SUZI RM/RMZ 06-13

934 672 N/A



Accordion
At Renthal we have always strived to produce the strongest, highest quality product we can. Our current handlebar range is at a strength level our factory level teams feels it needs to be but weight saving will always be high on their priority list. We made this our priority as well in developing Fatbar36.
twinwall
36TECH™ is a new handlebar standard developed by Renthal to push forward the boundaries of handlebar technology. The 36mm clamping diameter tapers down to a conventional 22mm control section at each end, using advanced wall geometry, maximising material efficiencies in wall thickness along the entire length of the handlebar to reduce weight.
twinwall

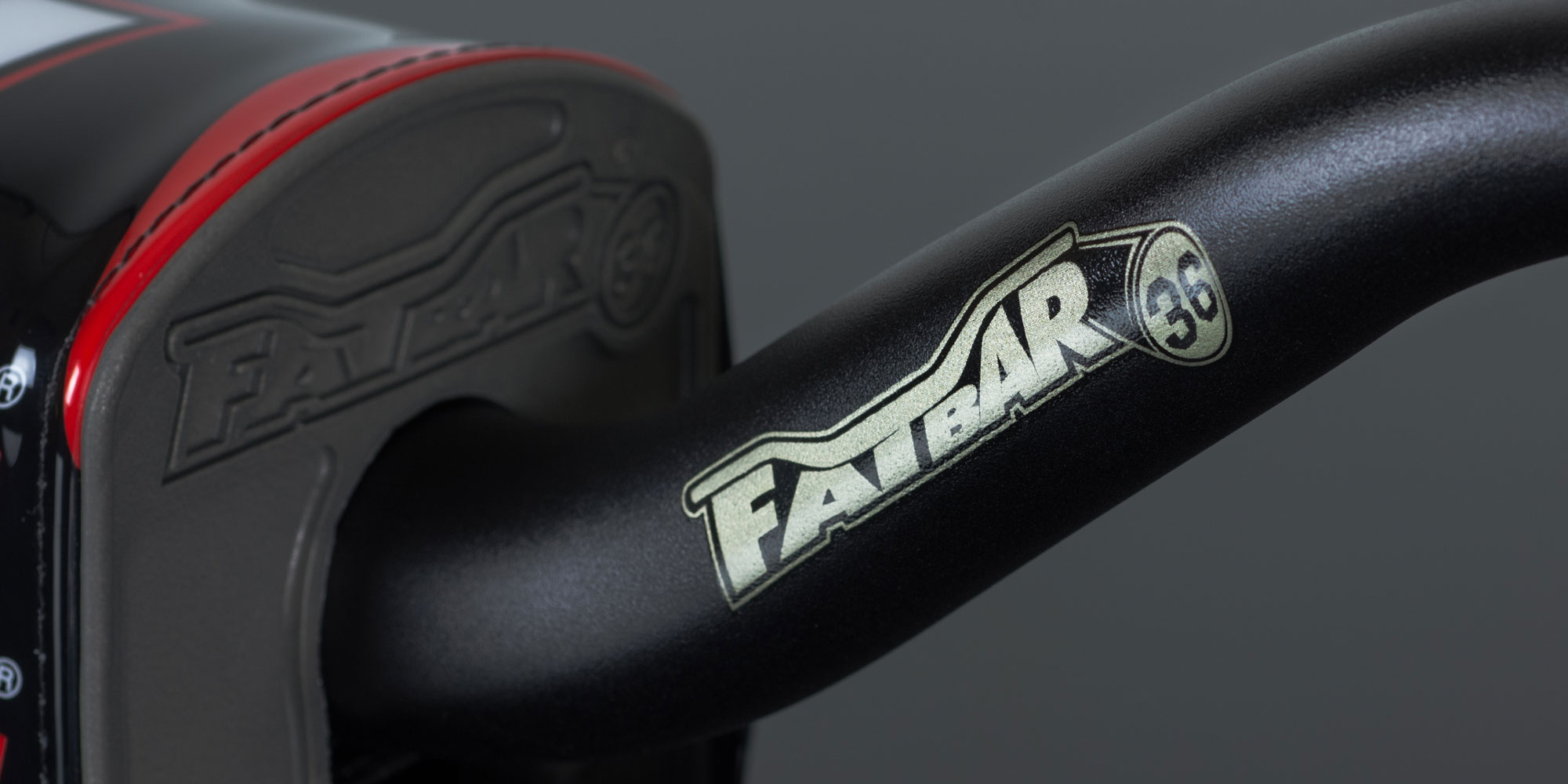

Zarilium® is a new aluminium alloy exclusive to Renthal. This new alloy has 20% greater ultimate tensile strength, while maintaining the same elongation properties. This additional strength has allowed Renthal to achieve the maximum weight reduction possible whilst matching the best in class strength of the Renthal® 28mm diameter Fatbar®.
twinwall
Renthal is at the forefront of handlebar testing. The only handlebar manufacturer using data acquisition and equipped with it’s own in house test facility. This perfectly positions Renthal to maximise it’s 50+ years of handlebar design, development and championship winning race experience. The result is the best performing handlebars with unrivaled quality.
twinwall

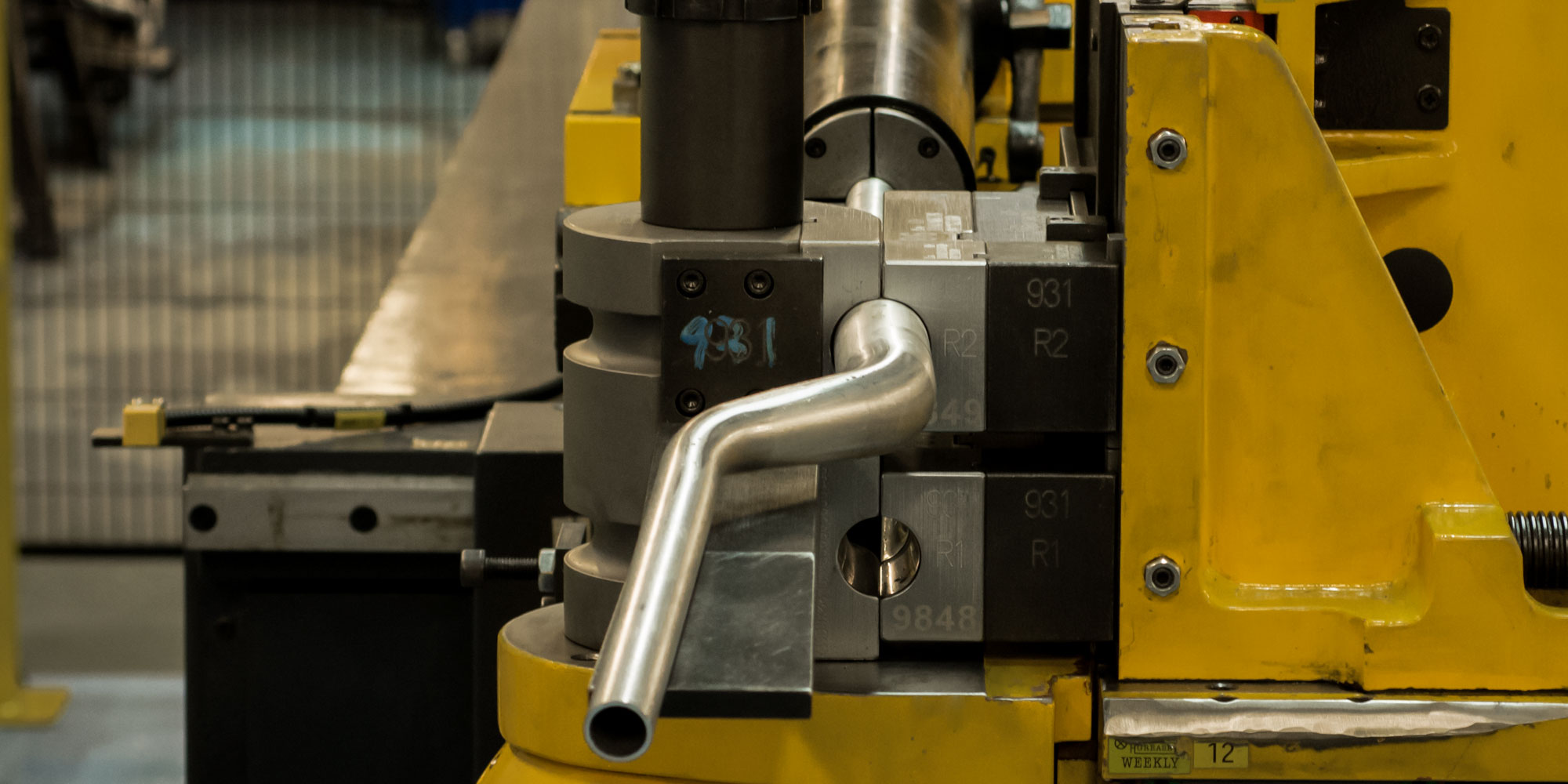

As the globally leader in handlebar technology we pride ourselves, not only on our engineering abilities, but also our state-of-the-art manufacturing facility. Taking raw Zarilium tube we put it through a host of operations to turn it into Fatbar36.
twinwall
The R-Works® badge represents uncompromising performance. It means we have selected the ultimate materials and manufacturing processes at our disposal to bring you the very best performance product we can. A fraction of a second. A few grams. A couple of millimetres. It all counts.
twinwall
