Twinwall®

The Renthal® Twinwall® motocross handlebar features a patented tube within a tube design borrowed from aircraft design principles to achieve the highest strength possible in a moto handlebar.

Twinwall®'s superior design construction allows it to withstand the hardest hits and biggest get offs without compromise, making it a popular choice to for championship contending athletes worldwide. Since their introduction in 1998, the Twinwall® handlebar has helped more riders win championships than any other handlebar in the world.

Installation Instructions
Accordion
The Twinwall consists of two aluminium alloy tubes, one within the other. This design gives the handlebar additional strength and security. Making Twinwall the toughest handlebar available.

Covered by: US Patent No. 6182528 & 5832785, GB Patent No. 2321225, US Design No. 431803
twinwall
The outer tube is made from 7010 T73 aluminium, which has extreme good resistance to mechanical damage and is anodised to prevent corrosion.

The inner tube is manufactured from an ultra high strength 7010 T6 aluminium which is hard anodised.
twinwall
Available in 6 anodised colours to personalise your setup.

• Black
• Blue
• Red
• Green
• Orange
• Tanium

Every Twinwall comes with a Renthal injection molded foam bar pad.
twinwall
Manufactured exclusively with in the Renthal Factory by Renthal manufacturing employees. The Twinwall under goes a 29 step process that sees raw tubing come in and finished handlebars leave the factory.
twinwall
Testing plays an important role during the development and production of each Renthal Handlebar.
twinwall
Renthal and Racing go hand in hand. We are proud to be in the hands of every racer, from 50cc mini riders to World Champions.
twinwall
918 RICKY JOHNSON / CR HIGH
918 RICKY JOHNSON / CR HIGH

918 RICKY JOHNSON / CR HIGH

918-01

$183.67 Ex Tax: $183.67

921 YAM YZ/YZF 06
921 YAM YZ/YZF 06

921 YAM YZ/YZF 06

921-01

$183.67 Ex Tax: $183.67

922 RC HIGH
922 RC HIGH

922 RC HIGH

922-01

$183.67 Ex Tax: $183.67

923 RC MINI / 85cc
923 RC MINI / 85cc

923 RC MINI / 85cc

923-01

$183.67 Ex Tax: $183.67

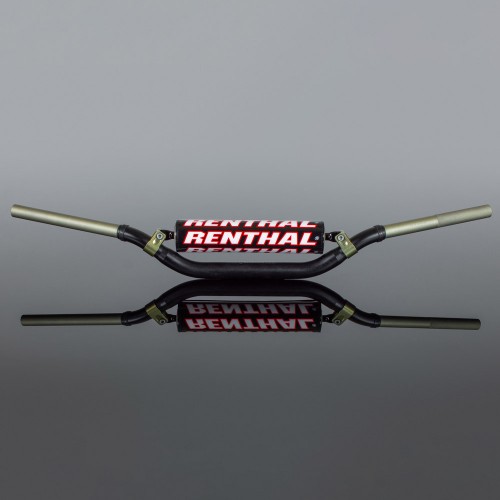

990 YAM YZ 07-23 / YZF 07-17
990 YAM YZ 07-23 / YZF 07-17

990 YAM YZ 07-23 / YZF 07-17

990-01

$183.67 Ex Tax: $183.67

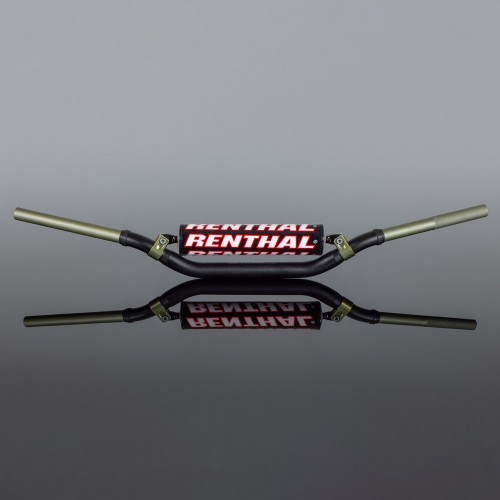

991 KTM SX/SX-F 09-12 SUZI RM/RMZ 06-13 YAM YZ-F 18-21
991 KTM SX/SX-F 09-12 SUZI RM/RMZ 06-13 YAM YZ-F 18-21

991 KTM SX/SX-F 09-12 SUZI RM/RMZ 06-13 YAM YZ-F 18-21

991-01

$183.67 Ex Tax: $183.67

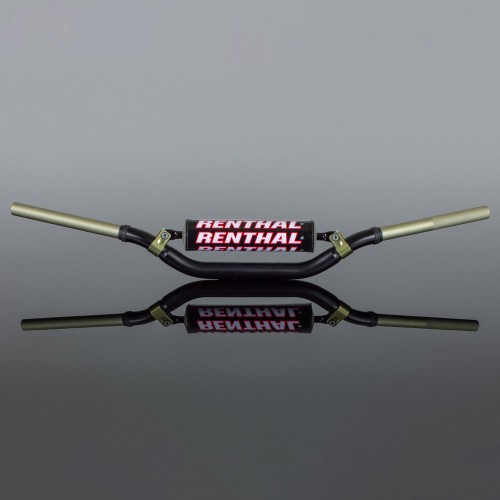

993 KTM SX 85 2013+ / HUSQ TE85 2017+
993 KTM SX 85 2013+ / HUSQ TE85 2017+

993 KTM SX 85 2013+ / HUSQ TE85 2017+

993-01

$183.67 Ex Tax: $183.67

994 KTM HIGH
994 KTM HIGH

994 KTM HIGH

994-01

$183.67 Ex Tax: $183.67

995 Twinwall
995 Twinwall

995 Twinwall

995-01

$183.67 Ex Tax: $183.67

996 VILLOPOTO/STEWART / HON CRF 2019+
996 VILLOPOTO/STEWART / HON CRF 2019+

996 VILLOPOTO/STEWART / HON CRF 2019+

996-01

$183.67 Ex Tax: $183.67

997 RC / HON CRF 04-18 KAW KX/KXF 2006+
997 RC / HON CRF 04-18 KAW KX/KXF 2006+

997 RC / HON CRF 04-18 KAW KX/KXF 2006+

997-01

$183.67 Ex Tax: $183.67

998 REED / WINDHAM
998 REED / WINDHAM

998 REED / WINDHAM

998-01

$183.67 Ex Tax: $183.67

999 MCGRATH / KTM SX125-450 2016+
999 MCGRATH / KTM SX125-450 2016+

999 MCGRATH / KTM SX125-450 2016+

999-01

$183.67 Ex Tax: $183.67

Name Part Number A B C D E F Prices From: Purchase
918 RICKY JOHNSON / CR HIGH 918-01 801 99 67 115 65 192 Black, Red, Blue, Tanium $183.67 Ex Tax: $183.67
921 YAM YZ/YZF 06 921-01 816 85 43 95 41 179 Black, Blue, Tanium $183.67 Ex Tax: $183.67
922 RC HIGH 922-01 812 120 86 115 58 187 Black, Red, Blue, Tanium $183.67 Ex Tax: $183.67
923 RC MINI / 85cc 923-01 754 112 80 80 40 170 Black $183.67 Ex Tax: $183.67
990 YAM YZ 07-23 / YZF 07-17 990-01 801 88 59 125 56 200 Black $183.67 Ex Tax: $183.67
991 KTM SX/SX-F 09-12 SUZI RM/RMZ 06-13 YAM YZ-F 18-21 991-01 806 85 51 125 56 200 Black, Orange $183.67 Ex Tax: $183.67
993 KTM SX 85 2013+ / HUSQ TE85 2017+ 993-01 779 88 53 105 50 195 Black, Black $183.67 Ex Tax: $183.67
994 KTM HIGH 994-01 810 99 70 110 40 195 Black, Blue, Tanium, Orange $183.67 Ex Tax: $183.67
995 Twinwall 995-01 802 86 54 125 54 193 Black $183.67 Ex Tax: $183.67
996 VILLOPOTO/STEWART / HON CRF 2019+ 996-01 811 93 53 130 49 200 Black, Red, Blue, Green, Tanium, Orange, Purple $183.67 Ex Tax: $183.67
997 RC / HON CRF 04-18 KAW KX/KXF 2006+ 997-01 804 105 64 110 54 200 Black, Red, Blue, Green, Tanium, Orange, Purple $183.67 Ex Tax: $183.67
998 REED / WINDHAM 998-01 803 98 69 110 56 190 Black, Red, Blue, Green, Tanium, Orange, Purple $183.67 Ex Tax: $183.67
999 MCGRATH / KTM SX125-450 2016+ 999-01 813 79 42 125 54 200 Black, Red, Blue, Tanium, Orange, Purple $183.67 Ex Tax: $183.67
Dimensions Explained
handlebar dimensions
