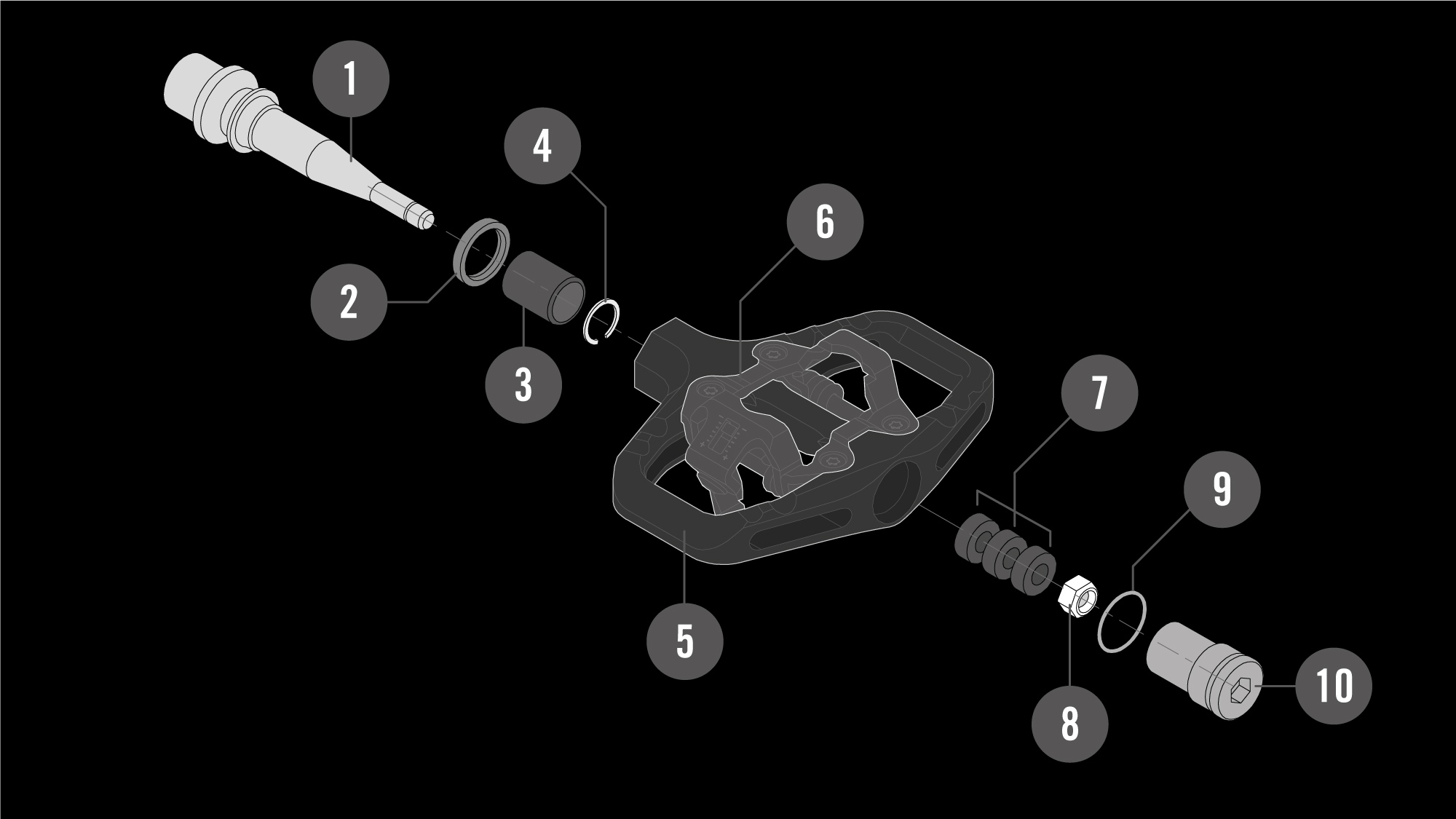

Revo-TRC Exploded Diagram
| ID | Description | Service Kit |
|---|---|---|
| 1 | Axle 03 (x2) | PDS08-01 |
| 2 | Main Seal (x2) | PDS07-01 |
| 3 | Igus bush (x2) | PDS07-01 |
| 4 | Snap ring (x2) | PDS07-01 |
| 5 | Pedal Body | N/A |
| 6 | Bindings (x2) | PDS06-01 |
| 7 | Bearings (x6) | PDS07-01 |
| 8 | Retaining Nut (x2) | PDS07-01 |
| 9 | O-Ring (x2) | PDS07-01 |
| 10 | End Cap (x2) | PDS09 |
| Description | Kit | Includes |
|---|---|---|
| Bush/Bearing Service Kit (02) | PDS07-01 | 2,3,4,7,8,9 |
| Replacement Axle (02) | PDS08-01 | 1 |
| End Caps (02) | PDS09 | 10 |
| Revo Binding Kit | PDS06-01 | 6 |
