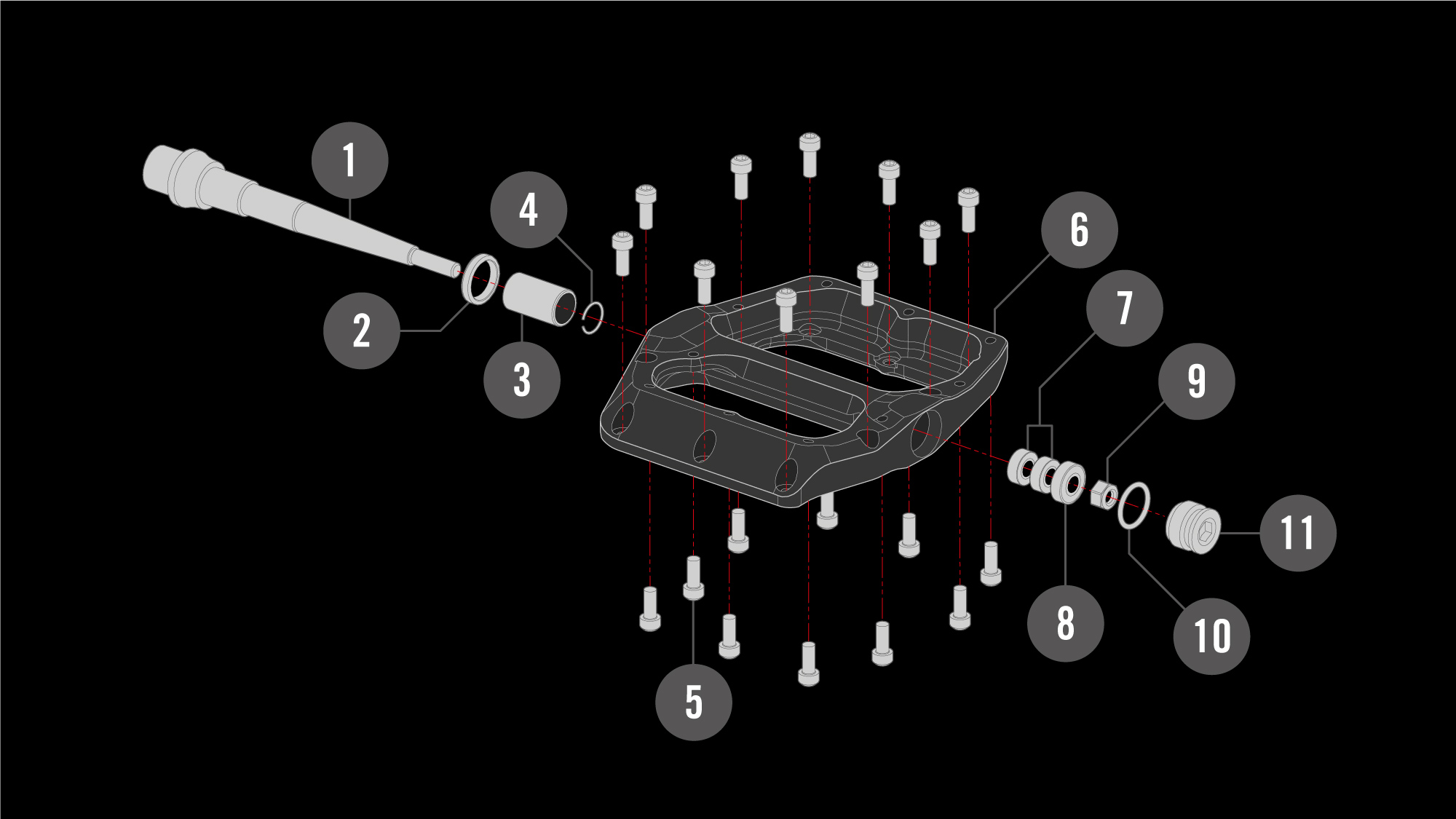

Revo-F Exploded Diagram
| ID | Description | Service Kit |
|---|---|---|
| 1 | Axle (x2) | PDS02-01 |
| 2 | Main Seal (x2) | PDS01-01 |
| 3 | Igus bush (x2) | PDS01-01 |
| 4 | Snap ring (x2) | PDS01-01 |
| 5 | Pins (x40) | PDS03-01 |
| 6 | Pedal Body | N/A |
| 7 | Small Bearings (x4) | PDS01-01 |
| 8 | Large Bearing (x2) | PDS01-01 |
| 9 | Retaining Nut (x2) | PDS01-01 |
| 10 | O-Ring (x2) | PDS01-01 |
| 11 | End Cap (x2) | PDS04-01 |
| Kit | Includes |
|---|---|
| PDS01-01 | 2,3,4,7,8,9,10 |
| PDS02-01 | 1 |
| PDS03-01 | 5 |
| PDS04-01 | 11 |
